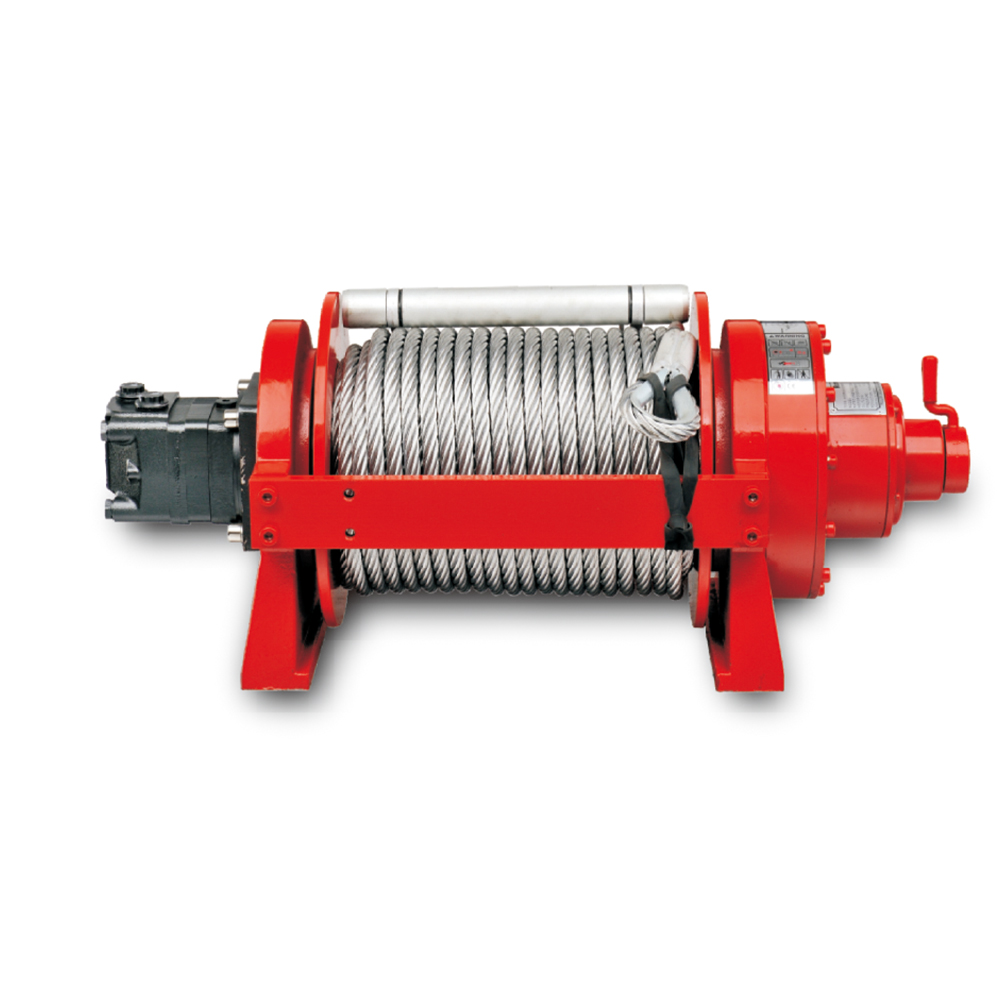

HWX 20000YD

Category: 13000 lb+, HWX Series, Hydraulic Winch, Tow Truck Winch

Features:

  • Full steel gear
  • Runva patent two stage planetary gear reducer
  • Automatic screw multI-disc brake
  • Special design for industry use

Inquiry

    Share:

    Previous
    HWX 20000YP
    Next
    HWE 100

    SPECIFICATIONS

    Rated line pull 20000 lbs (9072 kgs)
    Motor displacement: 100ml/r
    Oil flow: 15~75L/min
    Pressure 17.5Mpa
    Brake screw multi-disc
    Geartrain: 2-stage planetary steel gear
    Gear reducation ratio: 39:1
    Drum size(Dia×L): Ø5.4″×10.2″(Ø138mm×260mm)
    Mounting bolt pattern: 14.8″×2.5″×7.6″(375mm×64mm×192mm)8-M14
    Net weight: 238lbs/108kgs

    DIMENSIONS

    PERFORMANCE SPECS (first layer)
    Line Pull Pressure Flow Line Speed
    Lbs.(kgs) Mpa(Psi) G/min.
    (L/min.)
    Ft/min.
    (M/min.)
    0 2.5(362.6) 4.0(15) 5.9(1.8)
    4000 (1814) 4.2(609.1) 7.9(30) 11.8(3.6)
    8000 (3629) 8.5(1232.8) 13.2(50) 19.7(6.0)
    15000 (6804) 14.0(2030.5) 15.9(60) 23.6(7.2)
    20000 (9072) 17.5(2538.1) 19.9(75) 29.5(9.0)
