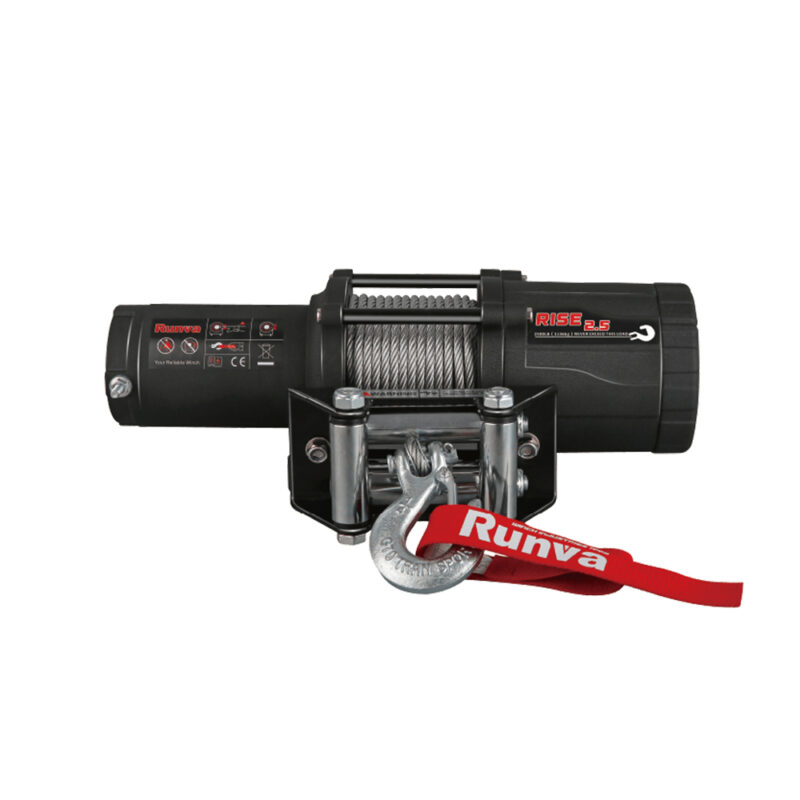

RISE 2500

Category: 1000-4500 lbs, ATV&UTV Winch, Electric Winch, RISE Series

Features:

  • Smooth & reliable 3-stage planetary gear train
  • Robust performance with powerful motor
  • All-new easy-to-operate clutch design
  • Full IP67 waterproof design

Inquiry

    Share:

    Previous
    SUP 3500
    Next
    RISE 3500

    SPECIFICATIONS

    Rated line pull 2500 lbs (1135 kgs)
    Motor:permanent magnet 12V:Input:2.4kW/3.2hp;Output:1.0kW/1.3hp
    24V:Input:2.4kW/3.2hp;Output:1.05kW/1.37hp
    Brake Mechanical spring
    Geartrain Full steel
    Gear reduction ratio 166:1
    Clutch Cam
    Cable(Dia×L) Ø3/16″×45.9’(Ø4.8mm×14.0m)
    Drum size(Dia×L) Ø2.0″×3.2″(Ø50.4mm×82mm)
    Mounting bolt pattern 4.9″x3″(124mmx76.2mm);4-M8
    Net weight 26.9lbs/12.2kgs

    DIMENSIONS

    12V DC PERFORMANCE SPECS (first layer)
    Line Pull Line Speed Motor Pull by layer
    Lbs.(kgs) Ft/min.
    (M/min.)
    Current layer/Lbs.(kgs)
    0 17.0(5.2) 28amps 1/2500 (1135)
    1000 (454) 9.8(3.0) 80amps 2/2129(966)
    2000 (907) 8.2(2.5) 140amps 3/1854(842)
    2500 (1135) 7.2(2.2) 150amps 4/1642(745)
