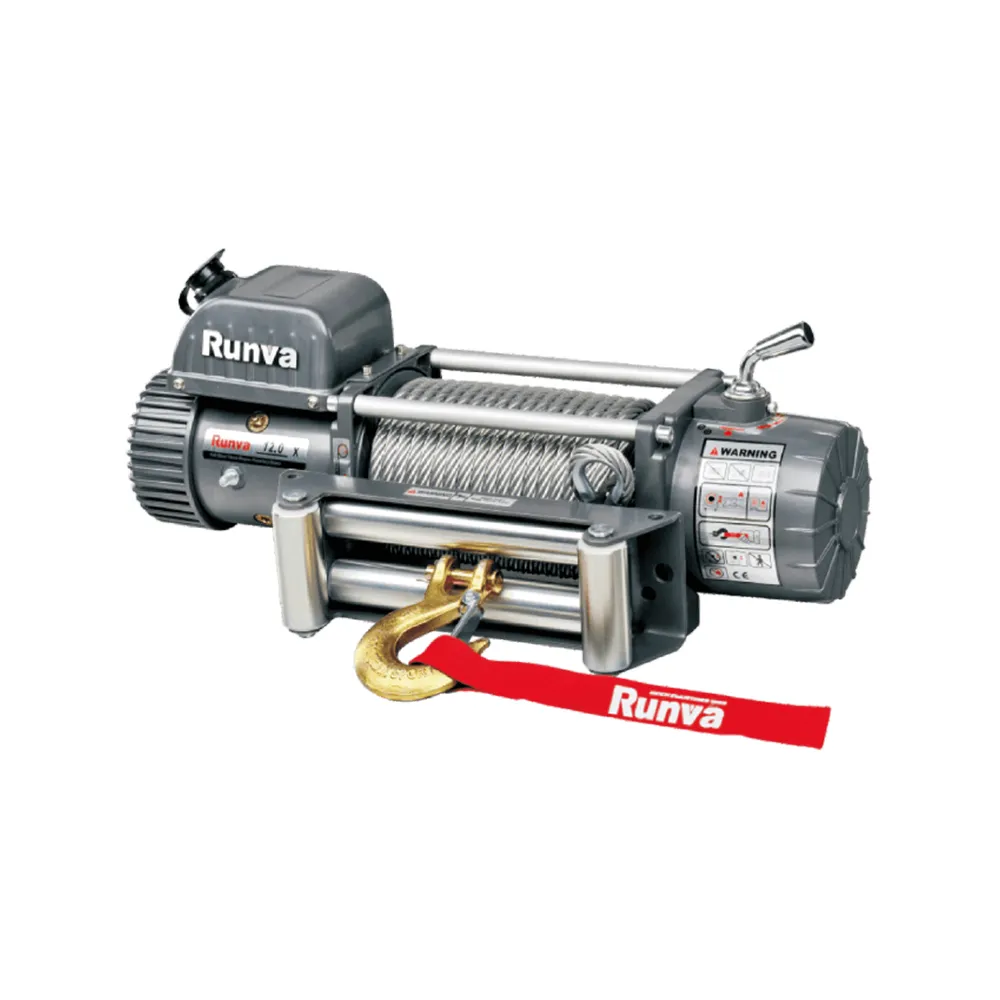

EWX 12000

Category: 5500-12500 lbs, Electric Winch, EWX Series, Off-Road Winch

Features:

  • Full steel gear
  • Runva patent three stage planetary gear reducer
  • Sliding geared ring cluth
  • Automatic screw cone braking action
  • Remote control through control box and switch
  • Wireless remote control available
  • DC 12v or DC 24v Power drive optional

Inquiry

    Share:

    Previous
    EWX 10000
    Next
    EWN 10000

    SPECIFICATIONS

    Rated line pull 12000 lbs (5443 kgs)
    Motor:permanent magnet 12V:Input:5.4kW/7.2hp;Output:2.7kW/3.6hp
    24V:Input:5.3kW/7.1hp;Output:3.3kW/4.4hp
    Brake Automatic screw cone
    Geartrain 3-stage planetary steel gear
    Gear reduction ratio 230:1
    Clutch Sliding geared ring clutch
    Cable(Dia×L) Ø13/32″×83.7’(Ø10.2mm×25.5m)
    Drum size(Dia×L) Ø2.48″×8.8″(Ø63mm×223mm)
    Mounting bolt pattern 10″×4.5″(254×114.3mm)4-M10
    Net weight 92.6lbs/42.0kgs

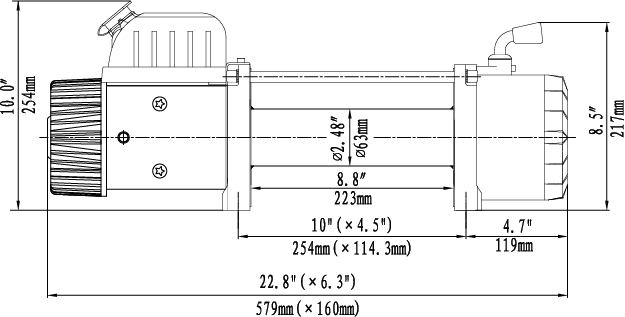

    DIMENSIONS

    12V DC PERFORMANCE SPECS (first layer)
    Line Pull Line Speed Motor Pull by layer
    Lbs.(kgs) Ft/min.
    (M/min.)
    Current layer/Lbs.(kgs)
    0 22.3(6.8) 100amps 1/12000(5443)
    4000 (1814) 13.1(4.0) 220amps 2/9563(4338)
    8000 (3629) 9.8(3.0) 330amps 3/7948(3605)
    12000 (5443) 5.9(1.8) 450amps 4/6800(3084)
